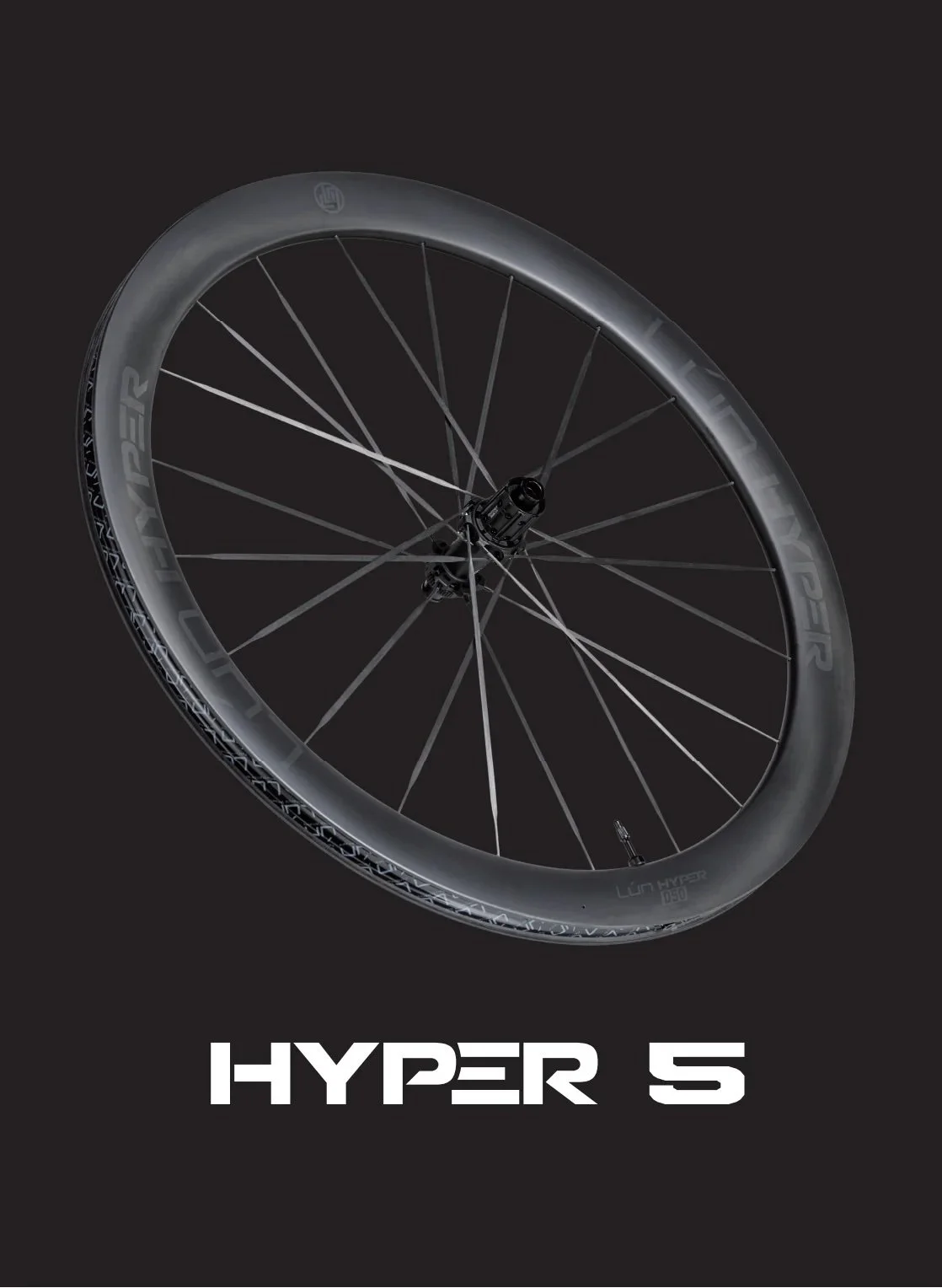

Winspace HYPER 5 Wheelset

£1,300.00

Elevate your ride with the Winspace HYPER 5 Wheelset, the pinnacle of aerodynamic and lightweight performance for road cyclists. Launched in 2025, this UCI-approved wheelset builds on the legendary HYPER series, offering unmatched speed, stiffness, and value.

With a filament-wound carbon rim, wide carbon spokes, and ceramic bearings, the HYPER 5 is designed for racers and enthusiasts chasing personal bests on flats, climbs, or sprints.

Rim Appearance:
Freehub Type:
Front Rim Profile:
Rear Rim Profile:

Elevate your ride with the Winspace HYPER 5 Wheelset, the pinnacle of aerodynamic and lightweight performance for road cyclists. Launched in 2025, this UCI-approved wheelset builds on the legendary HYPER series, offering unmatched speed, stiffness, and value.

With a filament-wound carbon rim, wide carbon spokes, and ceramic bearings, the HYPER 5 is designed for racers and enthusiasts chasing personal bests on flats, climbs, or sprints.

Key Features

  • Aerodynamic Excellence: Features F-RAPID rim profiles (46mm front, 54mm rear) optimized in wind tunnel tests with Japan FUDO Industry Inc., saving 2.2 watts at 48km/h compared to HYPER 23, for superior speed and stability.

  • Lightweight Construction: Weighs just 1,334g (±25g, disc brake), lighter than the previous D33 climbing wheelset, making it ideal for all terrains.

  • Enhanced Stiffness: Wide carbon spokes and a vertically aligned lacing design increase torsional stiffness by 28%, delivering direct power transfer for explosive sprints and climbs.

  • Tubeless-Ready: Supports 23-47mm tires (optimized for 25-28mm) with a 23mm internal/28.4mm external rim width, ensuring versatility and aero efficiency.

  • Durable Hubs: Equipped with ceramic bearings and a six-pawl ratchet system in a robust aluminum hub with 17mm axles, balancing low rolling resistance and reliability.

  • Finish Options: Choose between UD Matte (Laser Decal) or UD Black (White Decal) for a sleek, professional look.

Specifications

  • Rim Profiles: 46mm Front / 54mm Rear (F-RAPID Design)

  • Weight: 1,334g (±25g, disc brake)

  • Rim Width: 23mm internal, 28.4mm external

  • Spokes: Wide carbon spokes, vertically aligned lacing

  • Bearings: NBS Ceramic

  • Hub: Aluminum with 17mm axles, six-pawl ratchet

  • Tire Compatibility: 25-47mm, tubeless-ready (clincher compatible)

  • Brake Type: Disc brake (flat mount, 140/160mm)

  • Max Tire Pressure: 120 psi

  • Max System Weight: 130kg

  • Freehub Options: Shimano, SRAM XDR, Campagnolo

  • Finish: UD Matte (Laser Decal) or UD Black (White Decal)

Why Choose the Winspace HYPER 5 Wheelset?

The HYPER 5 combines cutting-edge technology with real-world performance, independently validated by Hambini Engineering as one of the fastest wheelsets available. Its stiffer, lighter design outperforms pricier competitors, while the hooked rim bead ensures easy tire installation and tubeless reliability. Ideal for performance-oriented riders, the HYPER 5 excels on smooth roads but may require lower tire pressures (e.g., 80-90 psi for 28mm tires) for comfort on rough surfaces due to its high stiffness.
