Winspace G3 Gravel

£1,150.00

Unleash your adventure with the Winspace G3 Gravel Frameset, the next evolution in gravel biking, launched in 2025.

Engineered for performance and competition, the G3 blends cutting-edge aerodynamics with a 950g frame weight (size M), a significant reduction from the G2, while preserving its renowned ride quality. Perfect for gravel racers, bikepackers, or roadies seeking off-road thrills, this frameset is your ticket to conquering any terrain.

Color:
Size:

Unleash your adventure with the Winspace G3 Gravel Frameset, the next evolution in gravel biking, launched in 2025.

Engineered for performance and competition, the G3 blends cutting-edge aerodynamics with a 950g frame weight (size M), a significant reduction from the G2, while preserving its renowned ride quality. Perfect for gravel racers, bikepackers, or roadies seeking off-road thrills, this frameset is your ticket to conquering any terrain.

Key Features

  • Lightweight & Aero Design: Crafted with Toray T700, T800, and M40 carbon fiber, the G3 weighs just 950g (frame), 450g (fork), and 130g (seatpost), with integrated aero elements for reduced drag and enhanced speed.

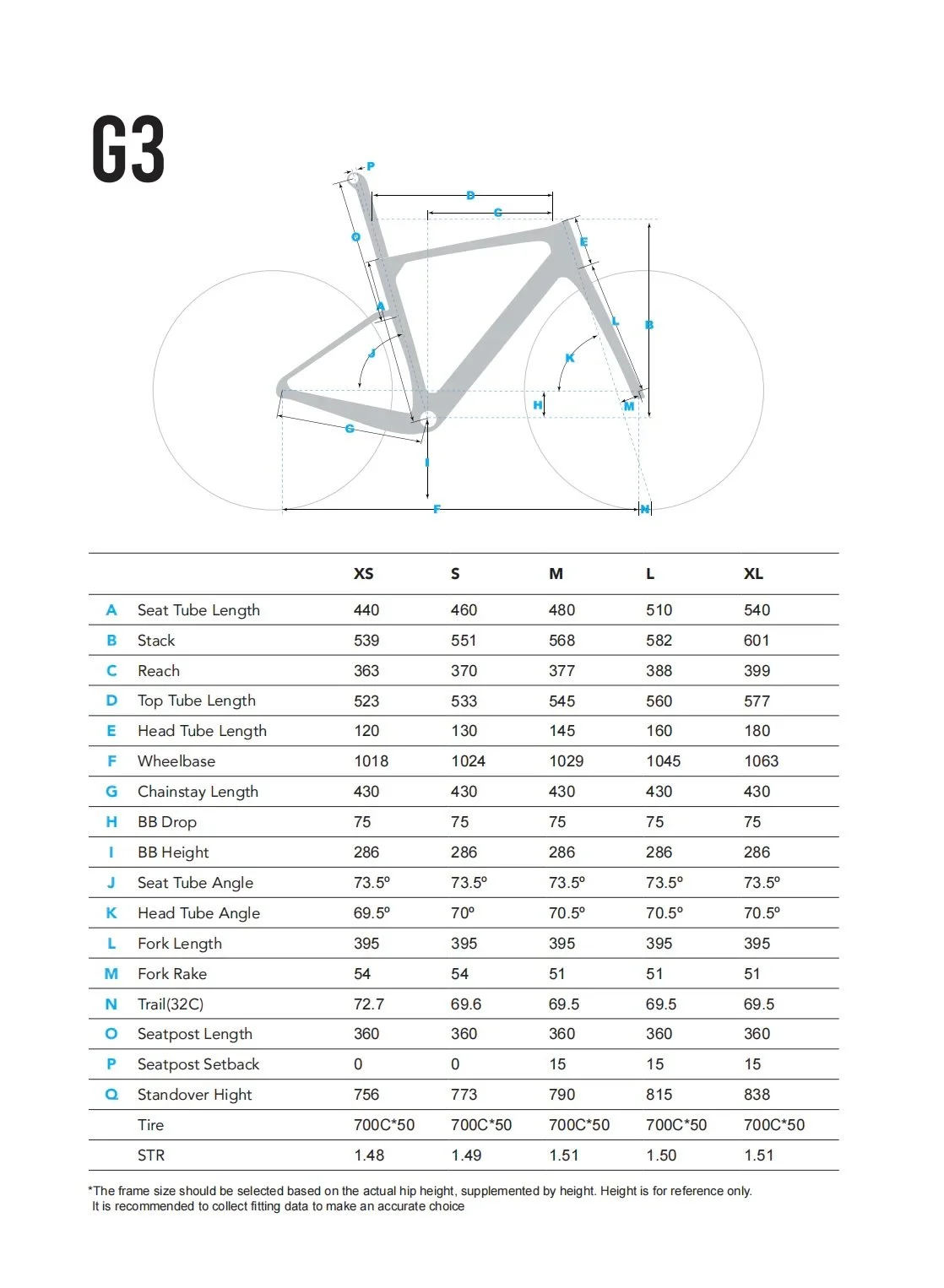

  • Versatile Geometry: Available in sizes XS, S, M, L, XL (440/460/480/510/540mm), with a 70-degree headtube angle and 68mm trail for stable descents and nimble handling on technical trails.

  • Massive Tire Clearance: Supports up to 700x50C tires (XS: 700x35C), ideal for rugged gravel, muddy trails, or smooth roads, with chainstays designed for optimal mud clearance.

  • Advanced Integration: Features internal cable routing (compatible with Di2, SRAM eTap, Campy EPS) and a T47-68 bottom bracket for easy maintenance and compatibility with modern groupsets.

  • Customizable Builds: With a UDH derailleur hanger and multiple mounting points, the G3 is a bike-builder’s dream, perfect for minimalist racing or fully loaded bikepacking adventures.

  • Stylish Finishes: Choose from Lunar Grey, Pearl White, Caffè Macchiato, Pink Clay, Grape Soda, or Carbon Black for a personalized look.

Specifications

  • Frame Sizes: XS, S, M, L, XL (440/460/480/510/540mm)

  • Carbon Fiber: Toray T700, T800, M40

  • Weight: Frame ~950g (M), Fork ~450g, Seatpost ~130g

  • Brake Type: Flat Mount Disc Brake (140/160mm)

  • Axle Spacing: Front 100mm, Rear 142mm

  • Thru-Axle: Front M12 P1.0 114L, Rear M12 P1.0 163L

  • Tire Clearance: Up to 700x50C (XS: 700x35C)

  • Headset: 1-1/2” - 1-1/2” (FSA ACR system)

  • Bottom Bracket: T47-68 Threaded

  • Cable Routing: Internal (Mechanical, Di2, eTap, Campy EPS)

  • Derailleur Hanger: UDH

  • Finish: Unidirectional (UD)

Why Choose the Winspace G3 Gravel?

Building on the success of the G2, the G3 Gravel Frameset pushes boundaries with a lighter, stiffer frame and aerodynamic enhancements, making it ideal for competitive racing or epic adventures. Its progressive geometry ensures confidence on descents, while the large front triangle and multiple mounts accommodate bikepacking gear. Designed by Winspace’s expert team in Xiamen, China, with input from pro cyclists, the G3 delivers top-tier performance at an accessible price.
